Stock Number: GL2506

*CALL FOR AVAILABILITY

PRICE: $83,950 + FET $9,474 = TOTAL $93,424 (STATE AND LOCAL TAXES ARE NOT INCLUDED)

LEASE FOR AS LOW AS $1,685 PER MONTH FOR 72 MONTHS WITH A $1.00 BUYOUT – BASED ON APPROVED CREDIT

*FEDERAL EXCISE TAX ($9,474) IS NOT INCLUDED IN THE SALE PRICE FOR US BUYERS – INCLUDED IN LEASE PAYMENT

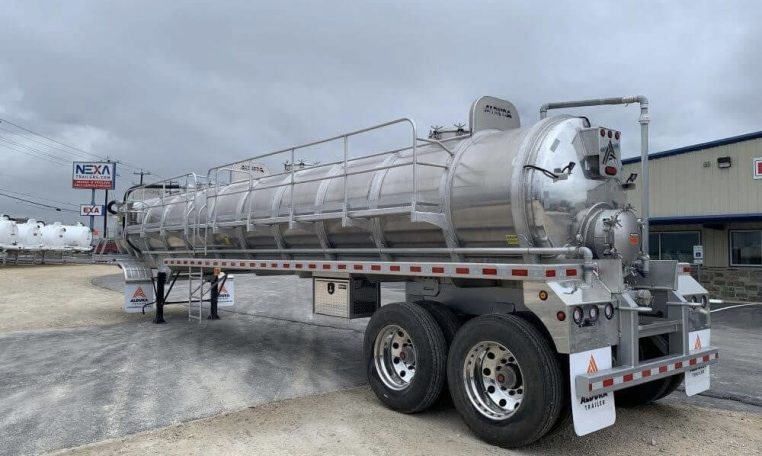

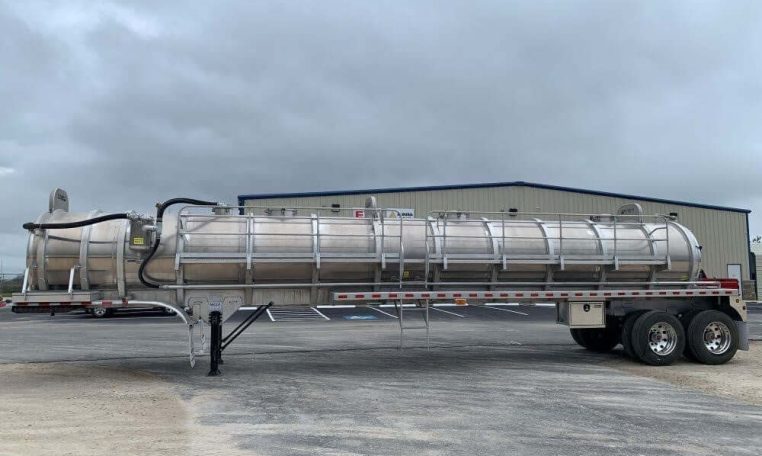

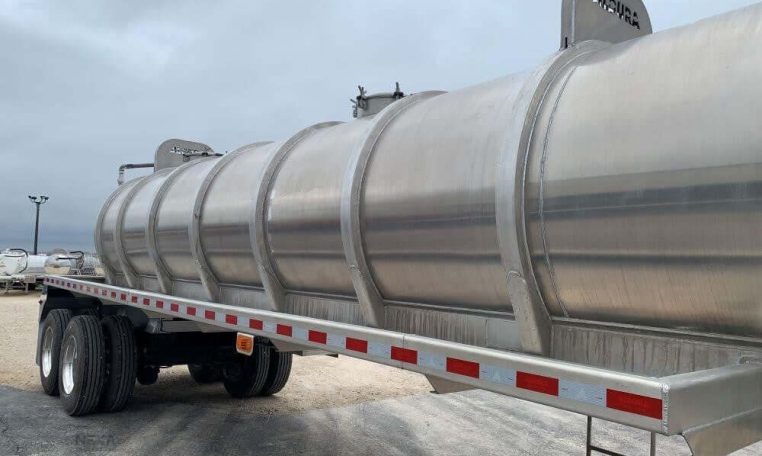

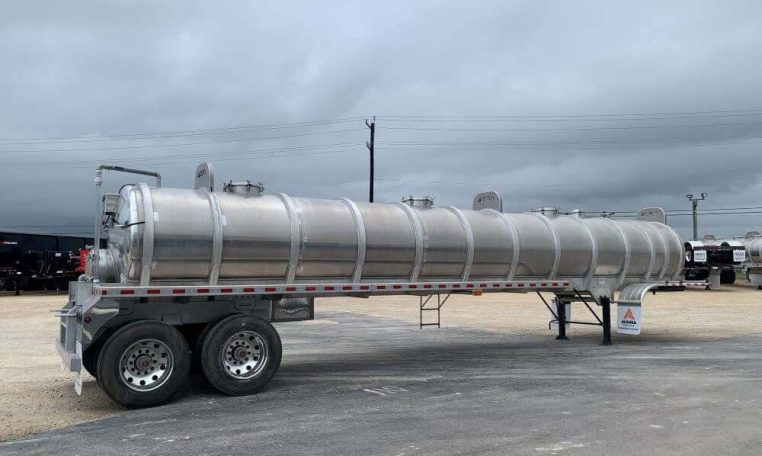

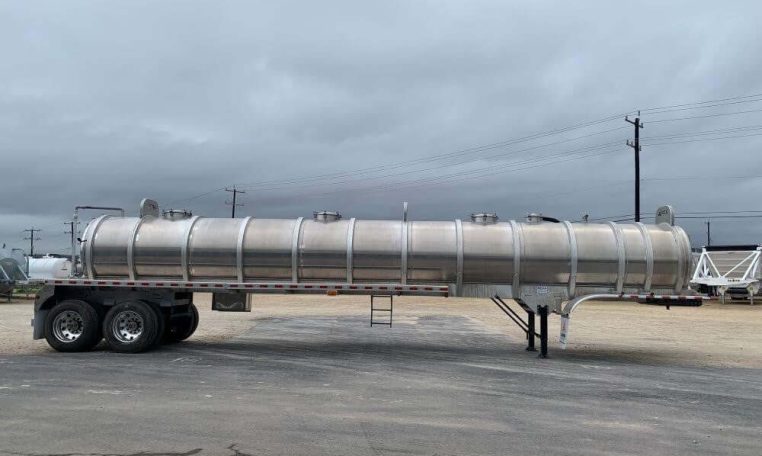

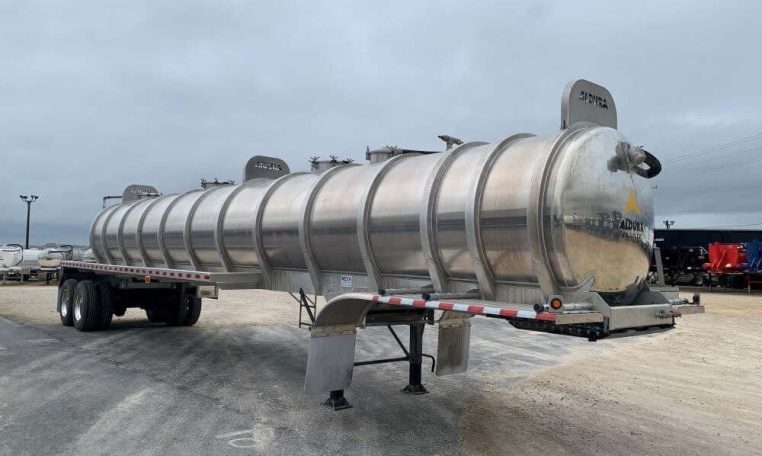

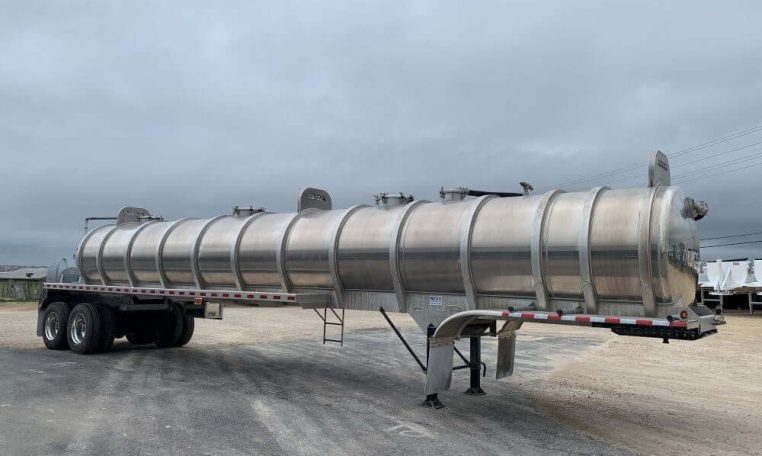

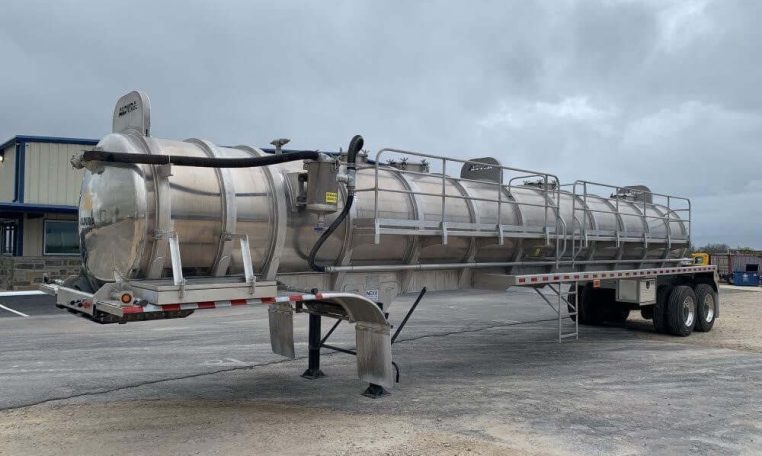

NEW ALDURA 165BBL ALUMINUM NON-CODE VACUUM TRAILER

• Capacity: 6,930 gal + 1% Expansion
• Commodity: Transportation of oilfield fluids such as water, mud, and oil field waste.
• Pressure: Tested at 23 PSI
• Relief Settings: 22 IN HG External, 17 PSIG Internal
• Overall Length: 45′
• Height: 10 ft. 9 in.
• Weight: 11,300 Lbs.
• Width: 102 in
• Material: Aluminum 5454H-32

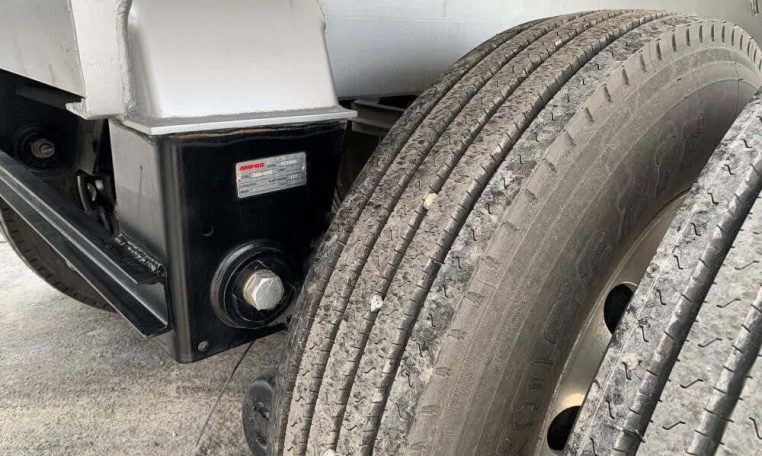

• Suspension: AMPRO Air Suspension
• Baffles: Four (4) of 1/4 in. thick
• Bulkheads: 3/8″ Aluminum 5454H Non-code ASME Shape
• Compartments: Single
• Overturn Protection: Three (3), at the front, middle, and back of the tank
• Shell: 1/4″ aluminum shell 5454H-32
• Rings: Thirteen (13) rolled of 4″x2″ C-channel profile
• Welding: Inside and out, minimal tie-ins with mig welding

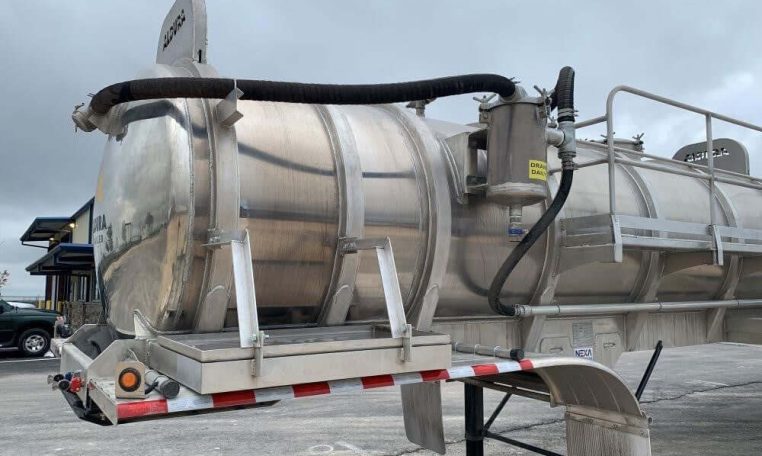

• Connections: 4 in. vacuum female camlock fitting on the middle top front bulkhead
• Outlet: One (1) 6” valve and male camlock with end cap.
• Shut Off: 4″ Ball type primary in front manway and 4″ ball type secondary 12 Gal. on driver’s side front with drain.
• Venting/Reliefs: 1-1/2 in. vacuum relief, 2 in. pressure relief, both located at the top front of the barrel, 2 in. blow down line at the rear
• Axles: Two (2) 30,000 lbs. each, 120 in. wide, 77.5 in. track, 77.5” track, 15” Ride height, weld-on hangers, ferrous hub, cast drum, ABS.

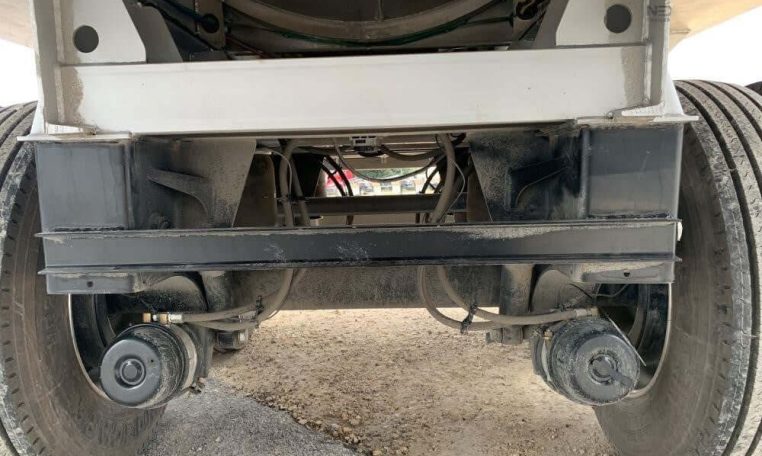

• Brakes: Air brakes with two boosters FMVSS-121, ABS 4S/2M Bendix anti-lock brake system

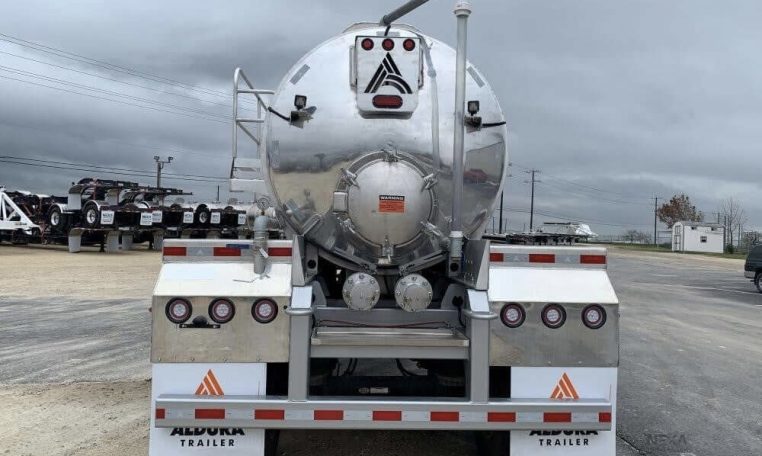

• Bumper: 4 in. X 6 in. tube per DOT
• Sub-frame: High Strenght Steel painted in aluminum color
• Landing Gear: One (1) AMPRO28-JT
• Tires: Eight (8) 11R X 24.5, All-Terrain
• Wheels: Eight (8) All-Aluminum 24.5″
• Upper Coupler: Bolt-on adjustable 3/8″ High Strenght Aluminum Steel Plate with 5/8″ bolts
• Access Ladder: One (1) safety driver-side access ladder with handrails

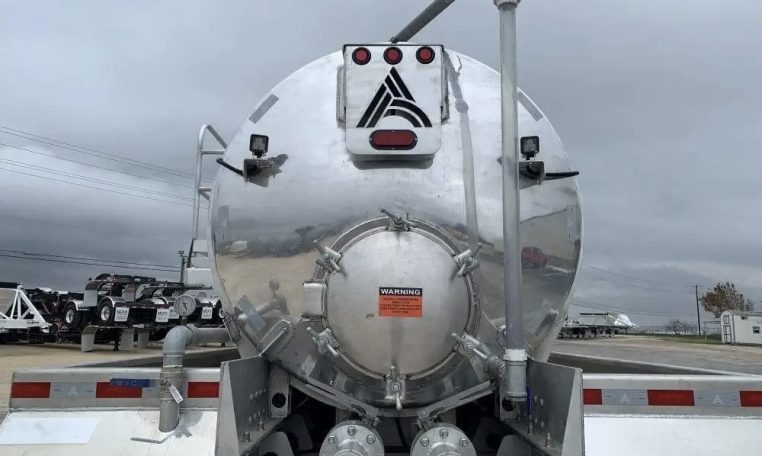

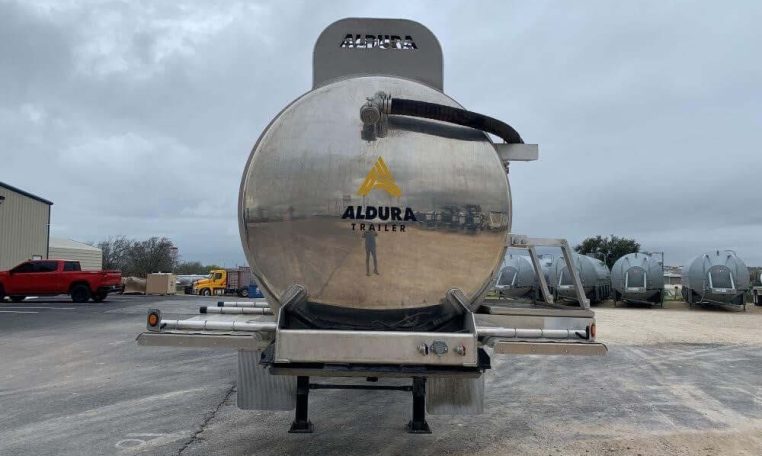

• Manways: Three (3) on top of the tank and one (1) on the rear bulkhead. All of 20 in. aluminum domed style with plates, swing bolts, and wing nuts

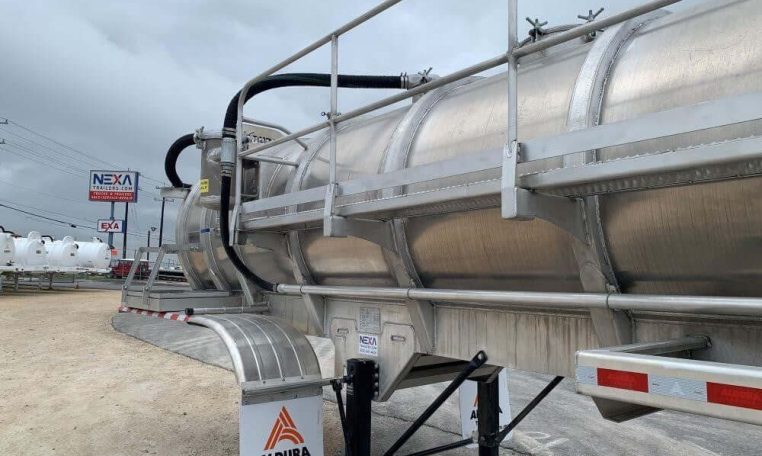

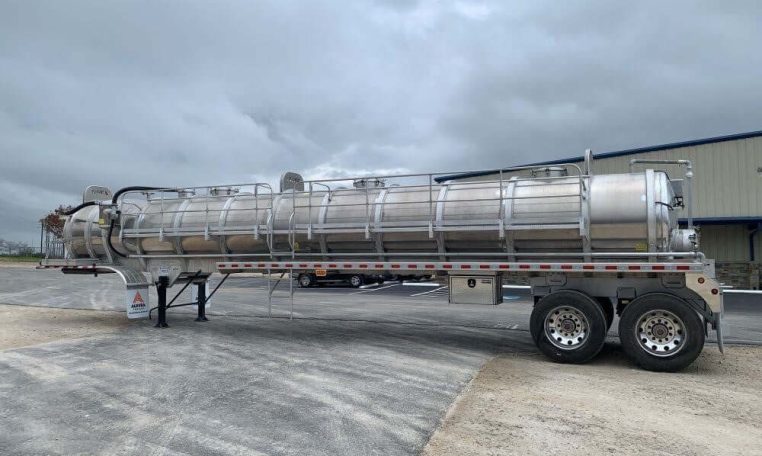

• Walkway: Driver side, with handrails, middle ladder, toe kicks, thru tread anti-slip walkway from the front to the top rear manway.
• External Coating: Hempel two coats of polyurethane on an epoxy primer (4-6 mils DFT)
• Internal Liner: Hempel 10-15 mil DFT epoxy liner
• Paint Prep: All steel surfaces sandblasted
• Conspicuity tape: 3M Per DOT
• Hose Tray: 3/16″x 25ft formed hose tray with 1/4 in. supports on both sides
• Fenders: Two (2) aluminum front fenders with mudflaps
• Lights: Sealed harness with Optronics GloLights LED per DOT. Two rear work lights with integrated switch.
• Mud Flaps: Four (4) anti-sail, front and rear

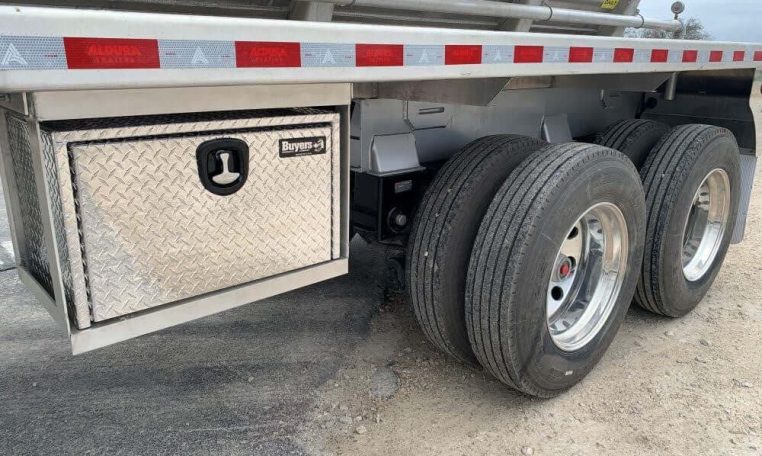

• Tool Box: One (1) on driver’s side (30 in. X 18 in. X 18 in.) with sealed and key-lock door
• Vacuum Manometer: One (1) located in the rear
• Fluid level: Tube-style sight glass with a drain in the rear of the trailer.
• Available Option: Fruitland or NVE Rotary Vane Vacuum Pump

Located in Texas. MANUFACTURERS WARRANTY. Financing and Leasing Available. Call (888) 432-9070 for Information. Delivery Available.
