2025 Peterbilt 548 (3150-Gallon / 70 BBL) Diamond ECO DOT 412 Code Liquid Vacuum Truck w/ Automatic Trans

Price:
$279,900 USD / $387,253 CAD

Contact Information

Great Lakes Equipment Sales Inc.
4818 W. 137th Street, Unit B
Crestwood, IL 60445
Toll Free: 888-432-9070

Description

Stock Number: GL2491

*IN-PRODUCTION FOR COMPLETION IN 4-WEEKS

PRICE $279,900 (FET INCLUDED IN PRICE)

LEASE FOR AS LOW AS $4,640 PER MONTH FOR 72 MONTHS WITH A $1.00 BUYOUT – BASED ON APPROVED CREDIT

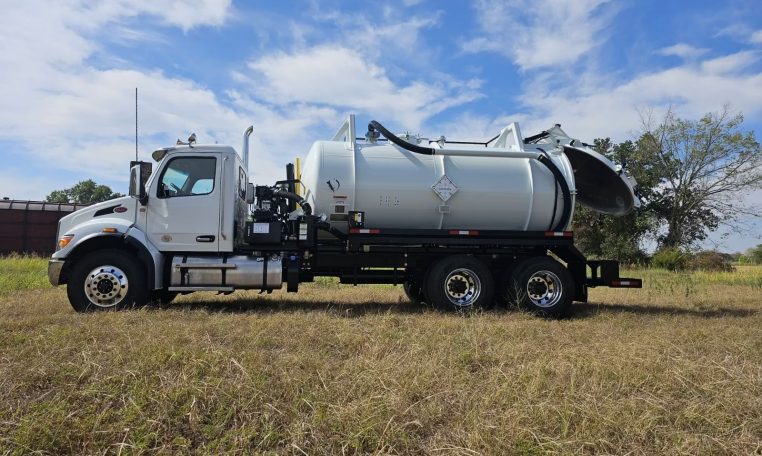

*PICTURES ARE NOT OF THE ACTUAL TRUCK

2025 PETERBILT 6X4 Chassis, Paccar PX-9 (350 HP) Diesel Engine, Allison 3000 RDS 6-Speed Automatic Transmission, Cruise Control, Power Windows, Locks and Mirrors, Heated Mirrors, Anti-Lock Braking System (ABS), VGT Exhaust Brake, Diff Locks, Wheelbase 230″, 4.88 Rear Axle Ratio, 50 Gallon Fuel Tank, ALCOA Polished Aluminum Wheels, Taper Leaf Springs 20,000# Front Suspension, Peterbilt Air Trac 40,000# Rear Suspensions, 60,000 GVWR.

Diamond ECO Solutions DOT Code 412 Vacuum Tank

  • DOT Code 412 Carbon Steel Vacuum Tank
  • 3,150 Gallon / 70 BBL Capacity
  • 5/16″ Carbon Steel SA-516-709 Heads
  • 5/16″ Carbon Steel SA-36 Shell
  • 70″ OD Tank Diameter
  • Design Pressure: (Internal) 25 PSI (External) 15 PSI (Full Vacuum)
  • 1/2″ Flat Bar External Reinforcement Rings
  • Overturn Protection w/ Reinforcement Pads
  • 3″ Stainless Steel, 25 PSI (412) Pressure Relief Vent
  • 4″ Primary Shutoff w/ 6″ Stainless Steel Float Ball Seating Against Neoprene Seat
  • Two (2) 30/30 Vacuum/Pressure Gauges. One Near the Controls and One on the Rear Tank Head
  • External Arrow Rotary Float Gauge w/ 8″ Stainless Steel Float Ball
  • One (1) Top 20″ Diameter Manway
  • One (1) 4″ Air Operated Self Closing NVE Valve, Coupling, 12V Heat Block and Drip Cap
  • 4″ Internal Riser Pipe w/ Deflector Wear Plate
  • One (1) 6″ Air Operated Self Closing NVE Discharge Valve, Coupling, 12V Heat Block and Drip Cap
  • Jurop RV520 (530 CFM @ 28″ Hg) Air-Cooled Vacuum/Pressure Rotary Vane Pump
  • Pump Oil Catch Muffler w/ Drain Valve, Camlock Coupling for Exhaust Hose Adapter
  • Hydraulic Operated Full Opening Rear Door w/ HD Wingbolt Closures
  • Patented Self-Engaging Backdoor Safety Prop
  • Hydraulic Operated Tank Hoist
  • Two (2) Vacuum Hose Hooks on the Rear Tank Head
  • Full-Length Hose Trays on Both Sides of the Tank
  • Pressure Relief Valve Set at 14 PSI
  • Vacuum Relief Valve Set at 23″
  • Four (4) Multi-Purpose Placards
  • Back-Up Alarm
  • Steel 18″ x 18″ x 36″ Toolbox
  • Heavy-Duty DOT Rear Bumper for Under-Ride Protection

Located in Texas. Manufacturer Warranty. Financing and Leasing Available. Call 888-432-9070 for More Information. Delivery Available.

Specifications

Stock #:
GL2491
Location:
Texas
Truck Type:
DOT Code Trucks
Condition:
New
Year:
2025
Make:
Peterbilt
Model:
548
Engine Make:
Paccar
Engine Model:
PX-9
Horsepower:
350
Fuel Type:
Diesel
Transmission:
Automated
Engine Brake:
Yes
Suspension Type:
Air Ride
Wheels:
Aluminum
Wheelbase inches:
230
Rear Axles:
Tandem
GVWR:
60,000
Front Axle Weight:
20,000
Rear Axle Weight:
40,000
Differential Lock:
Yes
Fuel Capacity:
50-Gallons
A/C:
Yes
Power Windows:
Yes
Power Locks:
Yes
DOT Inspection:
Yes
Body Make:
Diamond ECO Solutions
Body Model:
DOT 412 Code
Vacuum Type:
Rotary Vane Pump
Pump Make:
Jurop
Pump Model:
RV520
CFM Rating:
530
Pump Hg. Rating:
28"
Tank Type:
DOT 412
Tank Material:
Carbon Steel
Compartments:
One
Tank Capacity:
3150-Gallons
